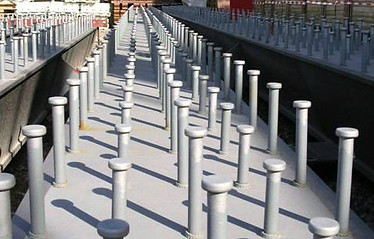

SHEAR CONNECTOR STUDS
DGC AFRICA produces Shear Connectors, crucial for steel-concrete composite structures, beam design, and construction. These connectors reinforce structures by locking the support structure to the concrete floor, transferring horizontal shear from the slab to the beam, allowing both elements to function as a single unit.
SERVICE OFFERING
PRODUCT RANGE
SHEAR CONNECTORS
Integral components for steel-concrete composite structures.
STUD WELDING EQUIPMENT
Includes capacitor discharge (CD) and drawn arc (DA) equipment.
APPLICATIONS
STEEL-CONCRETE COMPOSITE STRUCTURES
Used in beam design and construction.
REINFORCING MEMEBERS
Transfer horizontal shear, enhancing strength and stiffness without additional steel.
INSTALLATION
STUD WELDING PROCESS
Creates an arc between the stud and workpiece surface, melting both to form a strong joint.
TYPES OF STUD WELDING
Capacitor Discharge (CD) Stud Welding
Arc Stud Welding
CD STUD INSULATING
PINS AND WASHERS
APPLICATIONS
Ideal for heating, ventilation, air-conditioning, signage, and construction industries.
INSTALLATION PROCESS
Weld pins on sheet metal, place insulation, press a self-locking washer onto the pin and bend or clip the pin to complete the fastening process.
BENEFITS
COST SAVINGS
Reduction of building materials in composite structure design.
REDUCED BUILDING HEIGHT
Lighter beams result in shallower floor sections.
ENHANCED STRUCTURAL SECURITY
Secures concrete to steel components.
INCREASED SHEAR LOADING CAPACITY
Improves shear loading in steel buildings.
OPTIMIZED SPACE
Allows for larger rooms with fewer obstructions.
RELIABLE AND SAFE
Suitable under static and dynamic stress.
MECHANICAL INTERLOCK
Ensures firm integration of steel and concrete, preventing cracking forces.
FIRM WELDS
Achieved through stud welding with controlled and monitored equipment.
CHALLENGES AND SOLUTIONS
COMPLEX PROJECT REQUIREMENTS
Tailored solutions addressing the unique challenges of each project.
ENSURING QUALITY AND TIMELINESS
Prioritizing quality and timely delivery to avoid operational disruptions.
CUSTOM SOLUTIONS FOR DIVERSE NEEDS
Developing solutions to meet specific project requirements with extensive services and expertise.
WHY DGC AFRICA
Partnering with DGC AFRICA provides comprehensive shear connector systems, from design to installation. Our extensive experience ensures cost-effective, fit-for-purpose solutions with quality and safety at the forefront. Discover the impact of our expertise. Join us on a journey of innovation and collaboration. At DGC AFRICA, we are ready to be your strategic partner, supporting growth and prosperity with unparalleled engineering solutions.
